Titan Cooling Package CSF and KoyoRad for 2020+ Toyota Supra MKV A90 / A91

Significantly Reduces Intake Air Temperature (IAT) for Maximum Performance (with Faster Heat Soak Recovery)

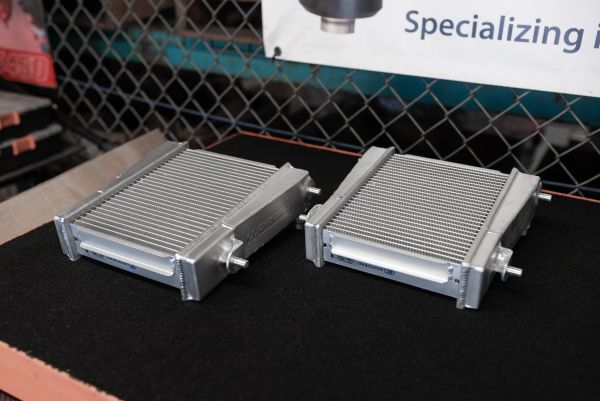

Koyorad is proud to introduce all-aluminum remote radiators for the 2020 Toyota Supra and 2018 to current BMW Z4 3.0L.  Features include: hand welded end tanks, furnace brazed and high density 48mm Hyper cores, and split directional louvered fins.  Radiator core thickness has been increased by nearly 80% over the OEM auxiliary radiators to boost the platform’s heat capacity and endurance.  An all-aluminum construction provides an excellent upgrade to the OEM plastic tank heat exchangers which are prone to cracking over time.  Packaging includes both driver and passenger side remote radiators.  All mounting provisions are retained for the OEM rock guards and shrouding.   Advanced engineering and design methods, impeccable TIG welds, proficient furnace brazing, and triple pressure testing for quality has earned Koyorad an excellent reputation in performance cooling worldwide

Part#

HH423660



Applications:

• 2020 Toyota Supra 3.0L Turbo
• 2018 to current BMW Z4 3.0L Turbo



CSF:

Improves Air Flow to the Rest of the Cooling System for Both Lower Engine Water and Engine Oil Temperatures

2-Row, 42mm Ultra High Performance Core

6.5mm Tall Multi-Louvered Fin with CSF’s Exclusive B-Tube Technology

CNC Machined Mounting Brackets and OEM Style “Quick Connect” Inlet/Outlet

100% All Aluminum TIG-Welded Construction

Includes Rock Guard & Transmission Oil Cooler Mounting Kit*

“Drop-in” Fit
2-Year Limited Warranty
1-Hour “Mirror Finish” Hand Polish

Tested and Proven by CSF’s Global Network of R&D Partners, Including Leading Time Attack Teams, Tuners, and Turbo Kit Manufacturers

Fits: 2020+ Toyota Supra (A90/A91)
& 2018+ BMW Models:
G29 Z4 20i, 30i & M40i
G20 3-Series (320i, 330i, 330iX, M340i, M340iX) G21 3-Series Touring (330i, 330iX, M340iX)

OEM#: 16400-WAA03 & 17118666811
